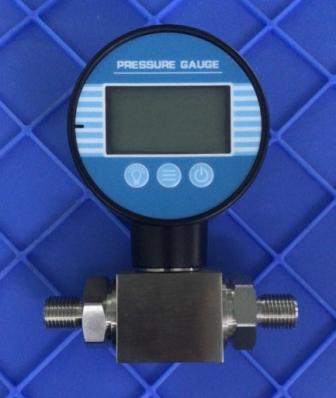

MSCY-X battery powered digital differential pressure gauge adopts high precision, high sensitivity pressure sensitive components and ultra-low power consumption microprocessor. It processes the differential pressure of the measured medium into digital signal and displays the differential pressure value in real time. It has the characteristics of fast response, high precision, good stability and long service life. It is widely used in petroleum, chemical industry, metallurgy, environmental protection, measurement, automatic control engineering, production process detection and other industrial automation fields.
Characteristic
5-Bits LCD display.
With ultra-low power consumption microprocessor, real-time detection can be used for more than 2 years.
Multiple pressure units available.
Can be customized according to customer requirements.
Can be used as standard calibration equipment.
Waterproof structure design of battery box.
Parameters
|
Form of pressure |
Differential pressure |
|
Display mode |
5-bits LCD |
|
Accuracy (%FS) |
0.25 |
|
Repeatability (%FS) |
≤0.25 |
|
Zero temperature drift (%FS/℃) |
≤0.02 |
|
Full temperature drift (%FS) |
≤0.02 |
|
Stability (%FS/年) |
≤0.25 |
|
Working voltage (V) |
9VDC（layer-built battery） |
|
Ambient temperature (℃) |
-20~60℃ |
|
Overload capacity（%） |
300 |
|
Life |
> 9 million pressure cycles |
|
Response time (ms) |
10 |
|
Measuring medium |
Various media compatible with stainless steel |
|
Diaphragm material |
316L |
|
Joint material |
304, 316, |
|
Interface |
M20*1.5, G1/2, G1/4, 1/4NPT or customized |
|
Protection rate |
IP65 |
