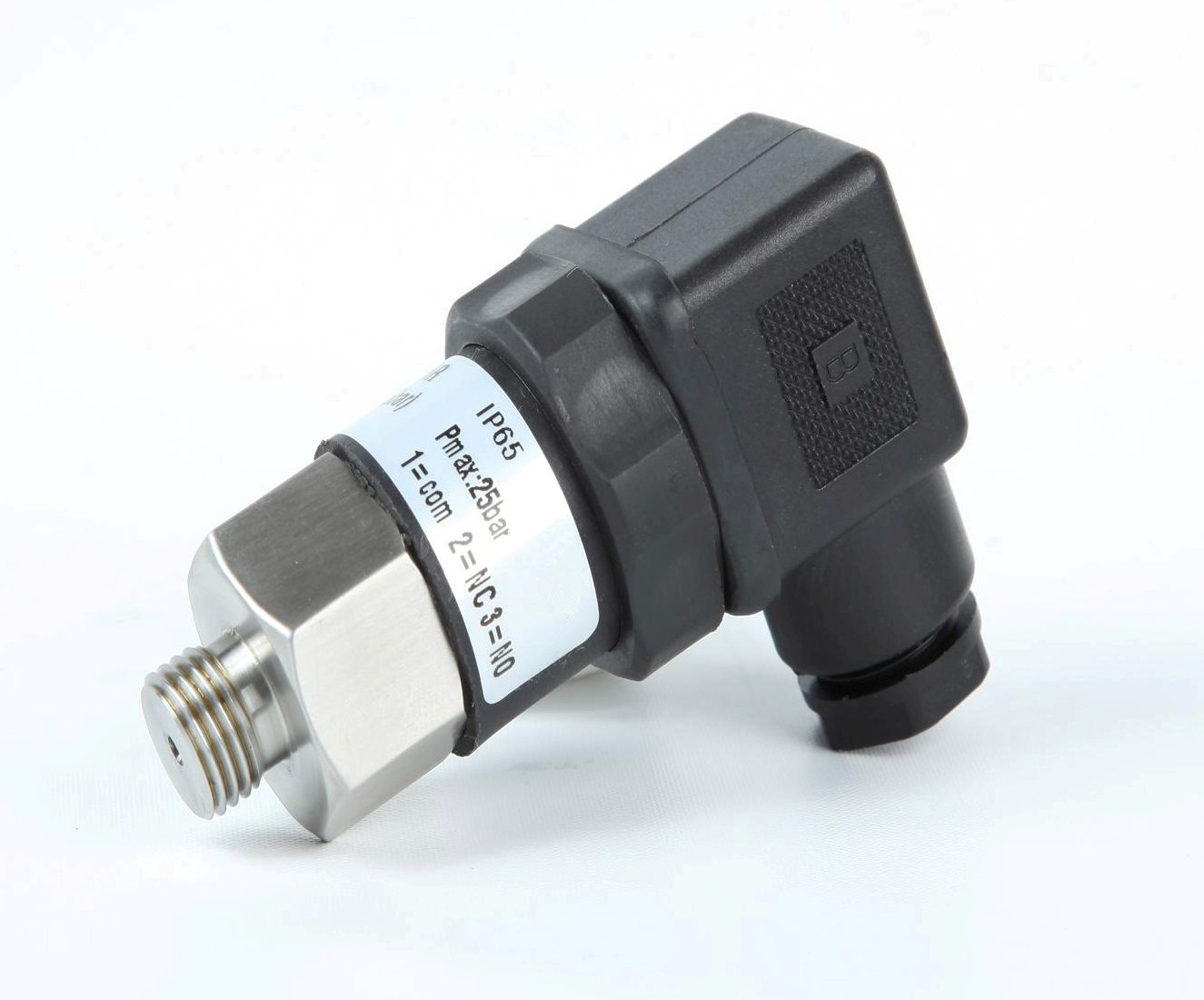

MC2010 compact pressure switch is a kind of small structure and flexible use. The built-in piston is attached to a precision spring, and the expansion of spring expands varies as the pressure changes. When the pressure reaches the set point, the product triggers the preset mechanical structure and sends a switch signal. The output of MC2010-S pressure switch is normally open and normally closed (SPDT).

Features

• Compact structure
• DIN standard plug, convenient wiring
• Wide range of measurements (optional within 0-40MPa)
• Excellent repeatability
• Normally open and normally closed (SPDT) output
• Gold-plated contact and high contact rating
• Pressure control for water, oil, and air pressure

Parameters

• Hysteresis: 20%-35%
• Accuracy: 3% set point

• Output: normally open + normally closed, gold-plated contact
• Contact rating: AC24V,3A； AC125V,1A； AC250V,0.5A
• Working temperature: -20~85℃ (-40~160℃ optional)
• Protection level: IP65
• Material: diaphragm: NBR
• Piston: stainless steel piston with NBR seal
• Process connections: stainless steel

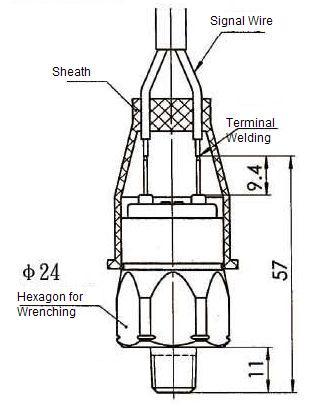

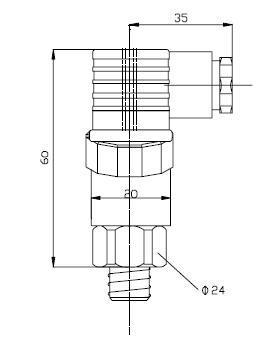

Dimensions

Model Instruction

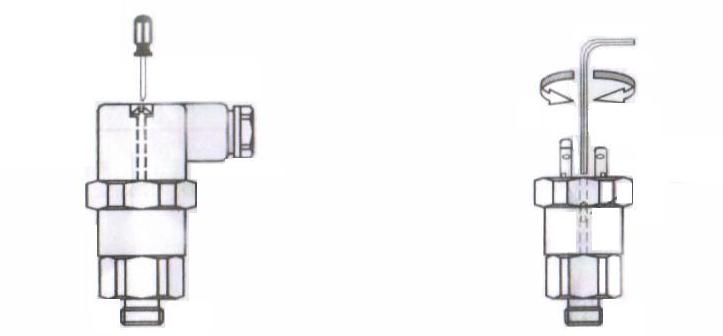

Pressure Point Adjustment

1st step, Unscrew the nut in the middle of the Hersman with a screwdriver and pull off the Hersman joint.

2ed step, Adjust the pressure setting point with a small wrench. Set the point up clockwise and set the point down counterclockwise.
