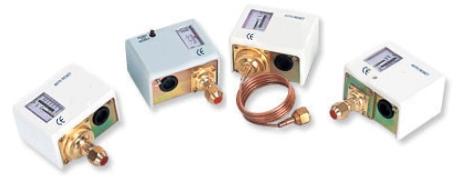

Model MC2020 Universal Pressure Switch

MC2020 universal pressure switch is a kind of pressure switch with ingenious structure and flexible use. It is equipped with bellows and mechanical mechanism When pressure rises or falls, the corresponding mediation springs and ripples produce stretch or contraction displacement, and then push the switch through the lever action, cut off or switch on the control loop.

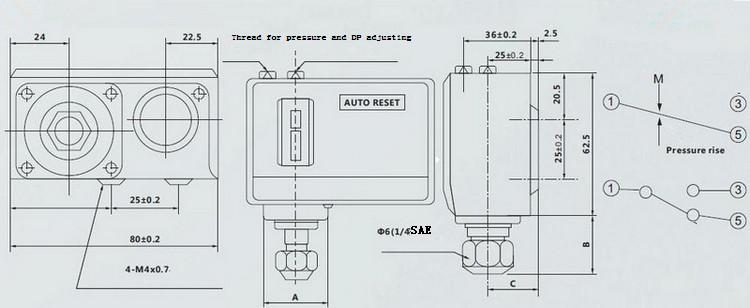

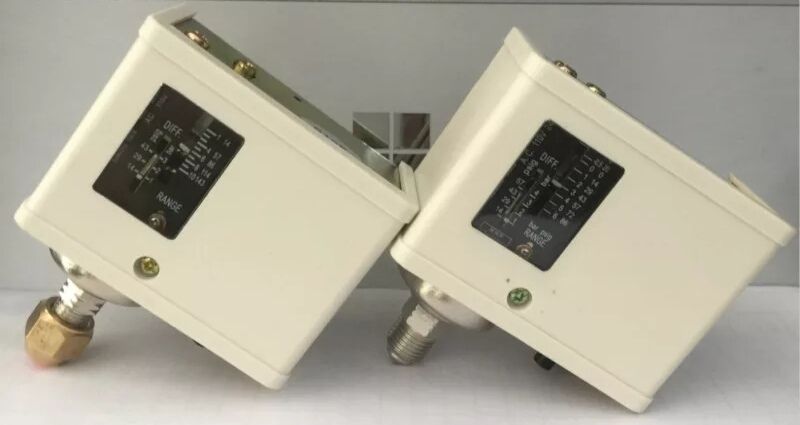

MC2020 universal pressure switch has exquisite window to display the actual pressure value, and the adjustment knob to adjust the pressure control pressure difference value.

Characteristics:

  • Compact structure
  • Wide range of measurement
  • High reproducibility
  • Hysteresis adjustable
  • Normally open and normally close contact
  • Contact silver plating, large contact capacity
  • Wide temperature range of the measuring medium

Specifications:

  • Range of measurement: see table below
  • Hysteresis: see table below
  • Output: normally open + normally closed, contact silver plated
  • Contact capacity: DC42V, 3A; DC125V, 8.5A; AC250V, 4.5A
  • Medium temperature: -45~120
  • Protection level: IP33
  • Interface thread: thread 1/4 "SAE" or G1/4 or as per required
  • Material: brass with nickel plated, NBR shell

Parameters:

Model

Range(bar)

Hysteresis(bar)

Default Setting(bar)

Maximum Pressure(bar)

Min

Max

Min

Max

OFF

ON

MC2020-502

-0.7

2

0.2

1.0

1.5

1

16.5

MC2020-503

-0.7

3

0.2

1.5

2

1

16.5

MC2020-506

-0.7

6

0.6

4

3

2

16.5

MC2020-506M

-0.7

6

≤1

3

Manual reset

16.5

MC2020-110

1

10

1

3

6

5

16.5

MC2020-516

5

16

1

4

10

8

35

MC2020-520

5

24

2

5

16

13

35

MC2020-530D

5

30

5

10

20

15

35

MC2020-530

8

30

3-5

20

15-17

35

MC2020-530M

8

30

≤4

20

Manual reset

35
