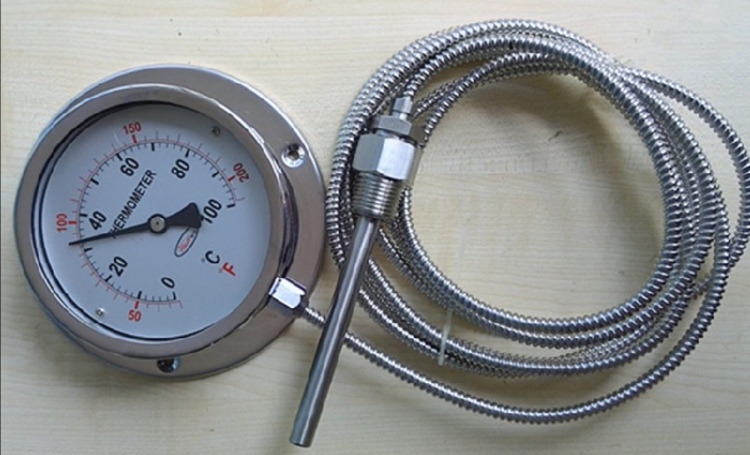

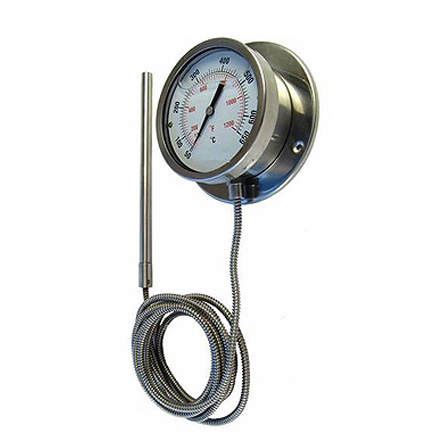

QYT Series is a kind of gas expansion thermometer, with all stainless steel construction and wetted part. With high temperature measurement up to 650℃, suitable for corrosive encironment in chemical industrial, processing, machiney, piping, building construction and various industries. Liquid fillable for extreme vibration application. QYTSeries ared designed mostly pipe and tank application, where corrosive and remote function is concern.
Technical Specification
Nominal Size: 4", and 6"(100 and 150mm)
Accuracy Class: Class 1.6
Connection Size: Sliding connection standard Size G¼", G½" or NPT
Temperature Scale Range: -40°..+650℃(-120°..+1200℉)
Mounting: Bottom，Back，wall or panel mount
Sensing Element: Gas filled measuring system
Filling: Dry, but fillable Silicone oil
Maximum Pressure On Stem: Maximum 25 Bar
Bezel Ring Type: Hermetically sealed fastening type
Dial Graduation: Standard in dual ranges ℉ and ℃, red and black Single range ℉ or ℃ black on white background
Design Material

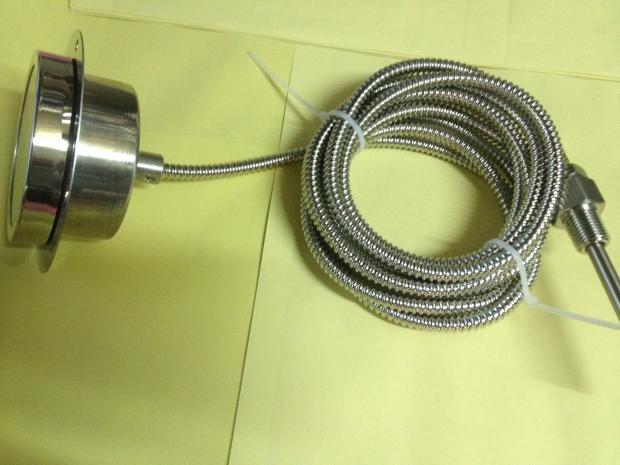

Casing, Bezel Ring & capillary: Stainless steel 304
Probe/ Bulb Sensor: Stainless steel 316
Connection: SS 304, sliding connection standard, or Union rotable connection
Window: Plain instrument glass
Pointer: Black painter aluminum
Dial Plate: Aluminum alloy, bowl cuppied type
