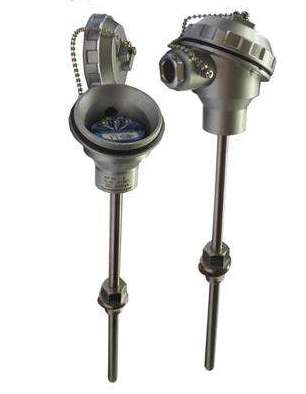

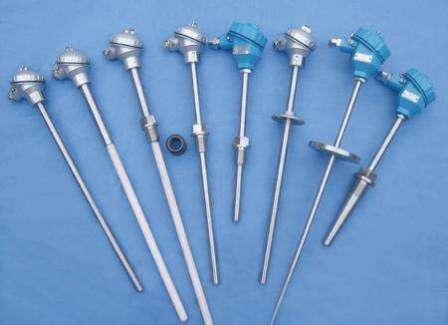

Model MCT80Y Integrated Temperature Transmitter

MCT80Y Integrated Temperature Transmitter is a kind of product can be on-site installed. It consists of thermocouple (or RTD) and temperature transmitter module, and measures the temperature of the objects. It adopts two-wire output of 4~20mADC(or user specified). The products have already extensively applied in the petroleum, chemistry industry, metallurgy, electric power, textile industry, food processing etc.

FEATURES

  • Compensation for cool end with high accuracy
  • Output signal linear with temperature
  • Range: -200~1600℃
  • Accuracy: ±0.5%
  • Output:4-20mA(two-wire) or user specified
  • Power supply:14-34VDC,or 24VDC
  • Load:0-500Ω(for24VDC)
  • Humidity:5~95%
  • Accuracy of the indicator:±2.5%(100%scale)
  • Power Consume:<0.5W
ORDERING CODES
MCT80Y-口-( ℃)-口-口-口-口-(L×I)Integrated Temperature Transmitter
Sensor
P
RTD(Pt100)
C
RTD(Cu50)
K
Thermocouple(K)
E
Thermocouple(E)
S
Thermocouple(S)
M
User specified
Range
(℃)
User specified
Installation
C1
M27×2
C3
Flange
C5
User specified
Material of pipe
G1
Stainless steel
G4
Ceramics
Diameter of pipe
D1
Φ12
D2
Φ16
D3
User specified
Insert depth
L×I
as illustrated bellow
