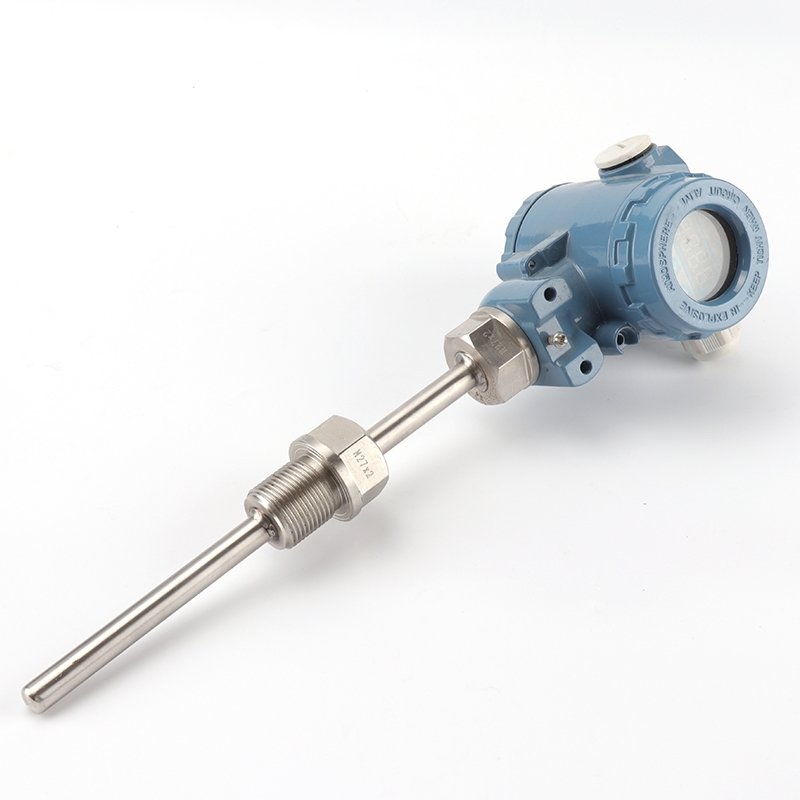

MCT80X integrated Temperature Transmitter with Display is a kind of product can be on-site installed. It consists of thermocouple (or RTD) and temperature transmitter module, and measures the temperature of the objects. It adopts two-wire output of 4~20mADC(or user specified) and give a on-site LCD(or LED) display to indicate the measurements. The products have already extensively applied in the petroleum, chemistry industry, metallurgy, electric power, textile industry, food processing etc.
FEATURES
MCT80X-口-( ℃)-口-口-口-口-(L×I)Integrated Temperature Transmitter with Display
|
||||||||
|
|
Sensor
|
||||||
P
|
RTD(Pt100)
|
|||||||
C
|
RTD(Cu50)
|
|||||||
K
|
Thermocouple(K)
|
|||||||
E
|
Thermocouple(E)
|
|||||||
S
|
Thermocouple(S)
|
|||||||
M
|
User specified
|
|||||||
|
|
Range
|
||||||
(℃)
|
User specified
|
|||||||
|
|

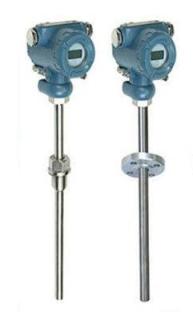

Installation
|
||||||
C1
|
M27×2
|
|||||||
C3
|
Flange
|
|||||||
C5
|
User specified
|
|||||||
|
|
Material of pipe
|
||||||
G1
|
Stainless steel
|
|||||||
G4
|
Ceramics
|
|||||||
|
|
Diameter of pipe
|
||||||
D1
|
Φ12
|
|||||||
D2
|
Φ16
|
|||||||
D3
|
User specified
|
|||||||
|
|
Insert depth
|
||||||
L×I
|
as illustrated bellow
|
|||||||
|
|
Display
|
||||||
X1
|
LCD
|
|||||||
X2
|
LED
|
