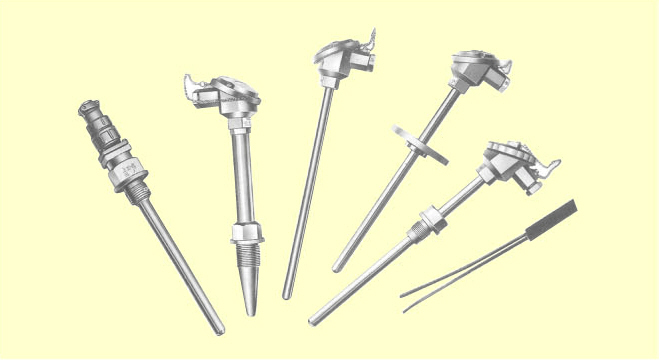

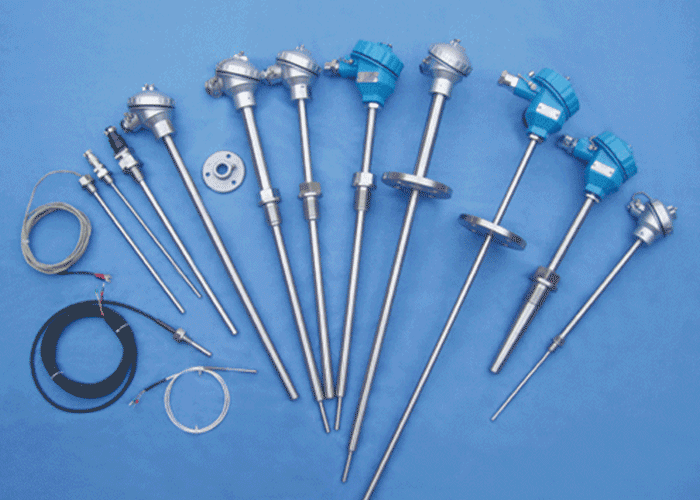

Model MC-WZP/WZPK Assembly / Armor / Explosion-proof Thermal Resistor

As a temperature sensor, thermal resistor is used to measure the temperature of liquid, steam, gas and the solid surface ranging -200°C to 500°C. It is noted for their flexibility, wear resistance, vibration resistance and high temperature resistance. The outer protective tube of the armored thermo element is made of stainless steel and in which high density oxide is used as the insulating layer, it is pollution resistance and enough mechanical strength, in order to meet the adverse circumstances.
FEATURES
Flexibility
Wear Resistance
Vibration Resistance
High Temperature Resistance
Compact type
Variety
Graduation
Diameter
Max Length
Thermal response time
Output wires
Pt. element single and dual
Pt100
Φ8  Φ6
20m
≤30s
Three wires of single
Six wires of dual
Φ5  Φ4  Φ3
≤15s
Thermal response time
Sheath Diameter
Thermal response time
Φ3
≤3s
Φ4
≤5s
Φ5
≤8s
Φ6
≤12s
Φ8
≤15s
