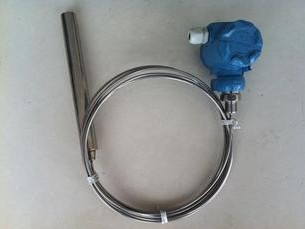

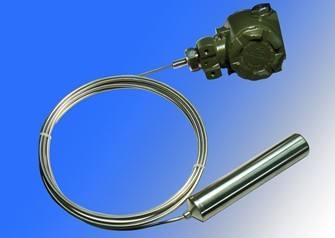

Model MC20CD Gas Conduction Liquid Level Transmitter(For High Temperature Liquid, Corrosive Liquid, etc)

Model MC20CD Gas Conduction Liquid Level Transmitter(For High Temperature Liquid, Corrosive Liquid, etc)

Price: US$98.00
Product description:
DOWNLOAD DATA SHEET
INQUIRY

With the sensor and electronic circuit installed in connection housing, model MC20CD Gas Conduction Liquid Level Transmitter applies gas sealed in the pipe and tube to conduct liquid pressure to the pressure sensor. Avoiding direct contact between medium and pressure sensor, MC20CD can be widely used to measure high temperature and corrosive liquid. The relationship between the level and pressure is:

P=0.0098ρL

P=Pressure; ρ(g/cm3)=Density; L=Level

FEATURES

Specially designed for high temperature liquid, corrosive liquid, sewage etc

High reliability and stability

Zero and span adjustable

SPECIFICATIONS

Range	0-0.5.......50meter
Output	4-20mA（1-5V）；0—10mA（0—5V）；User specified
Accuracy	0.5%(Normal), 1%(Maximum)
Stability（%F·S/year）	0.5%
Power	+24V（+12～+36）
Compensated temperature （℃）	0～60℃
Survey liquid temperature（℃）	-20℃～250℃
Overpressure（%）	300
Frequency response（Hz）	>1000
Material of diaphragm	316SS
Material of wet-part	304SS

MOUNTING

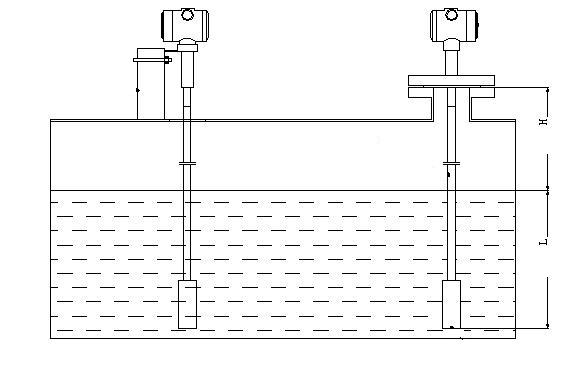

As shown below (Left): MC20CD-A Bracket or thread mounting

As shown below (Right): MC20CD-B Flange mounting

ORDERING CODES

MC20CD	Gas Conduction Liquid Level Transmitter
		Measuring Range
	X	0~1m…50mH₂O
			Accuracy
		Ⅲ	0.5%
				Signal Output
			E1	4~20mADC
			E2	4-20mA+HART Protocol
			K1	0~10mADC
			K2	0~5VDC
			K3	User Specified
					Length of Pipe
				Lm	(M)
					M1	0-100% Indicator Meter
					M2	31/2 LCD Meter
							Mounting
						B2	Bracket or Thread
						B3	Flange
						Y	User Specified
MC20CD X(0-5m) Ⅲ E1 Lm(7m) M4 B2 Example
