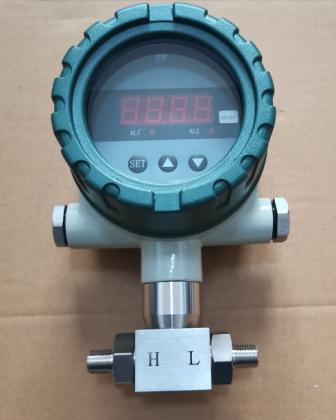

WM13082 Ex-proof Differential Pressure Switch (Differential Pressure Controller) is a type of explosion proof product for differential pressure measurement and control with 2 or 5 relay controllers and transmission output of 4-20mA and RS485. It is a full electronic structure, converting the signal from pressure sensor into standard output by high precise A/D microprocessor processing. It can display the differential pressure, and outputs the analog transmission and switching controllers. This smart digital differential pressure switch is flexible, safe, reliable easy to operate. It is widely used in hydroelectric, petroleum, chemical, mechanical, hydraulic and other industries.
Features
Simple wiring
The product can work as ex-proof requirement
ExdIICT6 ex-proof grade
Easy to set and operate
100mm dial
4 bits LED display. WM130825 has dual indicators
The power supply is 24VDC and 220VAC optional
Technical Parameters
Display：-1999~9999
Accuracy: 0.2%
Control output: relay, 4-20mA, RS485
Pressure control points and hysteresis: Can be set in full range
Contact capacity: 220V/3A, 24V/10A
Power consumption: 1W
Input voltage: 24V/220V optional
Working temperature: -20 -70℃
Compensation temperature: -10 -60℃
Stability：±0.2%FS/year
Overload capacity：200-300%
Housing Material: cast aluminum alloy
