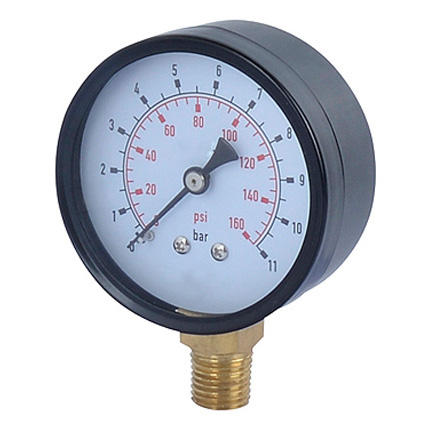

Model MY Utility Pressure Gauge are high quality dry pressure gauge designed to provide reliable service on non-corrosive and clean medium applications. This model are mostly used in manufacturing or processing industrial, especially for pneumatics process, fabrication, compressed gas and common industrial application.

Technical Specification

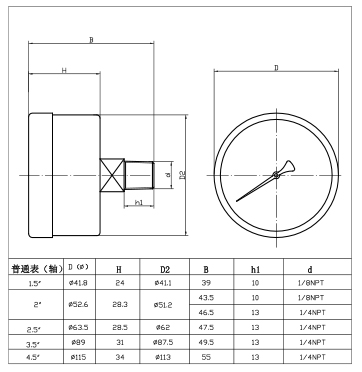

Nominal Size: 40,50,63,75,100,150,200,250mm
Accuracy Class: 40..75mm-Class 2.5; 100..250mm-Class 1.6
Ingress Protection: IP32
Connection Size: G1/8,G1/4,G1/2 or NPT or others
Scale Range: Pressure 0..3000 bar; Vacuum -1 bar..0; Compound -1..24 bar
Filling: Dry execution

Tube Element Shape: P≤100 bar in C tube; P＞100 bar in helicoid
Operating Temperature: Ambient temperature -10°..+70°C; Medium temperature 70°C Max.
Temperature Error: Additional error when pressure element temperature deviates from reference temperature +20°C（+68°F）, is ±0.4% / 10°C（50°F） rising or falling
Over Pressure Limit: 130% of F.S.P ≤ 100 bar; 115% of F.S.P＞100 bar

Dial Graduation: Black graduation on white for single range; Black and red graduation on white for dual ranges
