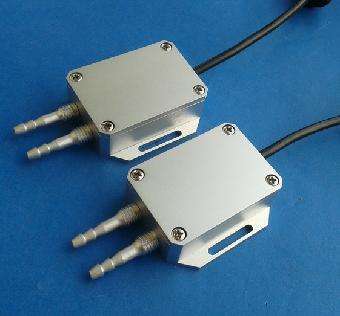

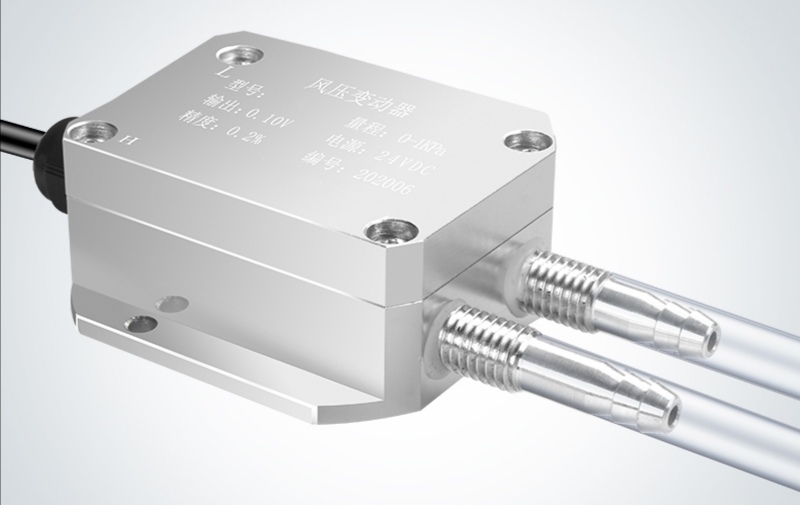

DESCRIPTION
Model MC2070A Delicate Differential Pressure Transmitter adopts diffused silicon chip and double seal pressure piping. It can be installed directly on pipeline or connected through probe. It is suitable for differential pressure measuring for medical treatment, chemical fiber, electricity, dustless house and etc. The transmitter uses proprietary current output with wide temperature compensation. This design references the primary pressure sensing diaphragm to the atmosphere, and provides a stable zero regardless of the transducer environment.
|
Pressure Media
|
gas
|
|
Supply Voltage
|
12 to 36V
|
|
Operating Range
|
(Differential/Gage/Negative Pressure):(-100KPa)-(-100Pa)-0~100Pa-200KPa
|
|
Accuracy
|
±0.25%, ±0.5%(25℃)
|
|
Over Pressure
|
200% full scale
|
|
Long Term Stability
|
<0.25%FS per year
|
|
Response
|
<100ms
|
|
Output Signal
|
(4～20)mA（Current two-wire/three-wire）,（0～10/20）mA
（0～5）V,（1～5）V,（0～10）V, etc. |
|
Temperature Range
|
-20～85℃(Normal), -20～200℃(Installation of the radiator)
|
|
Temperature Effects
|
0.00015%FS/℃
|
|
Pressure Connection
|
Pagoda-Shape Connectors or user specified
|
|
Electrical Connection
|
Cable Type
|
|
Protection Class
|
IP65
|
ORDERING CODES：
|
MC2070A( KPa)口E口A口C口R口 Delicate Differential Pressure Transmitter
|
||||||
|
MC2070A
|
|
|||||
|
|
(KPa )
|
Operating Range
|
||||
|
|
D: Differential Pressure G: Gage Pressure P: Negative Pressure
|
|||||
|
E口
|
Output Signal
|
|||||
|
|
1：(0～5)VDC 2：(4～20)mA 3： User Specified
|
|||||
|
A口
|
Accuracy
|
|||||
|
|
1：0.25 2：0.5
|
|||||
|
C口
|
Pressure Connection
|
|||||
|
|
1： Pagoda-Shape Connectors 2：User Specified
|
|||||
|
R口
|
Electrical Connection
|
|||||
|
|
1： Cable Type 2： User Specified |
|||||

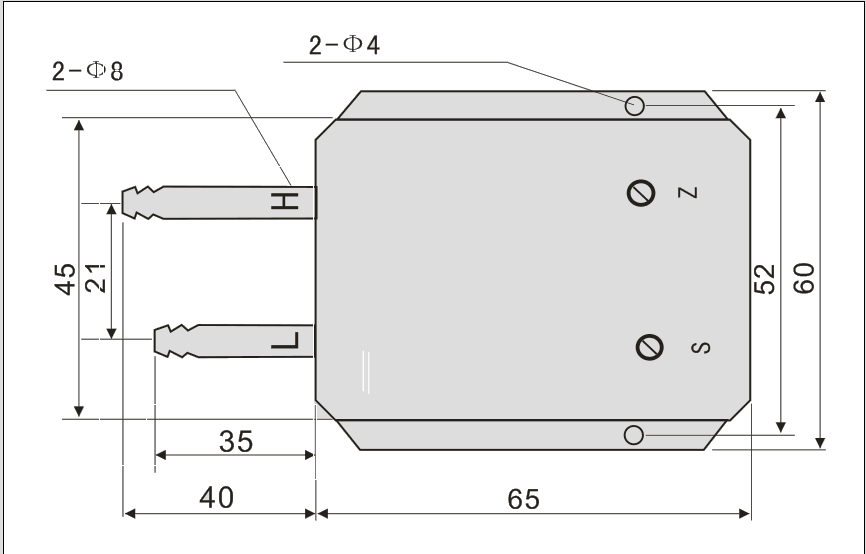

DIMENSION:

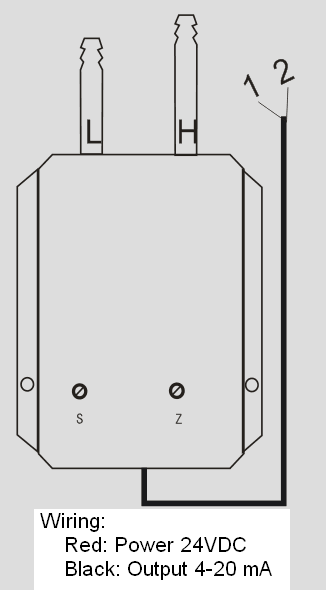

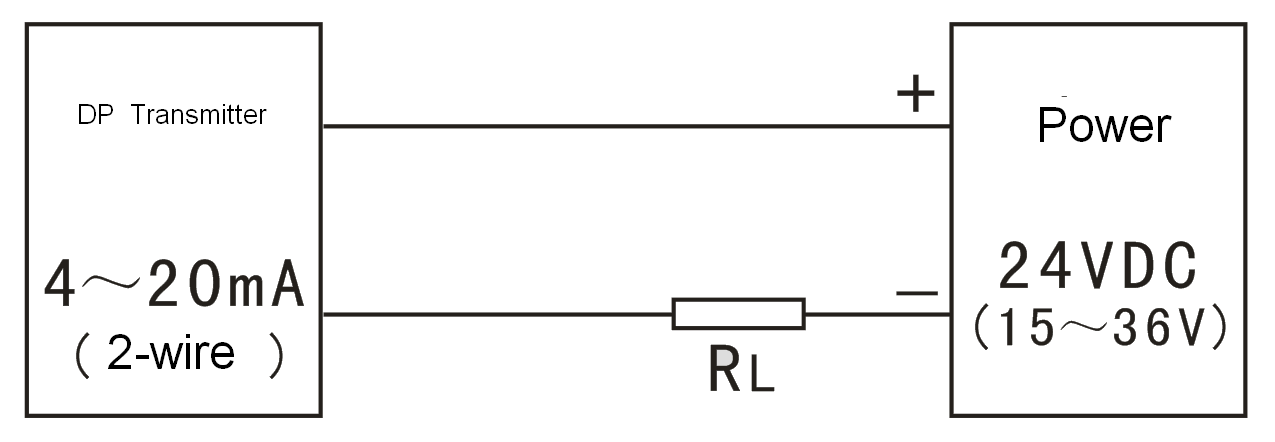

WIRINGS:
