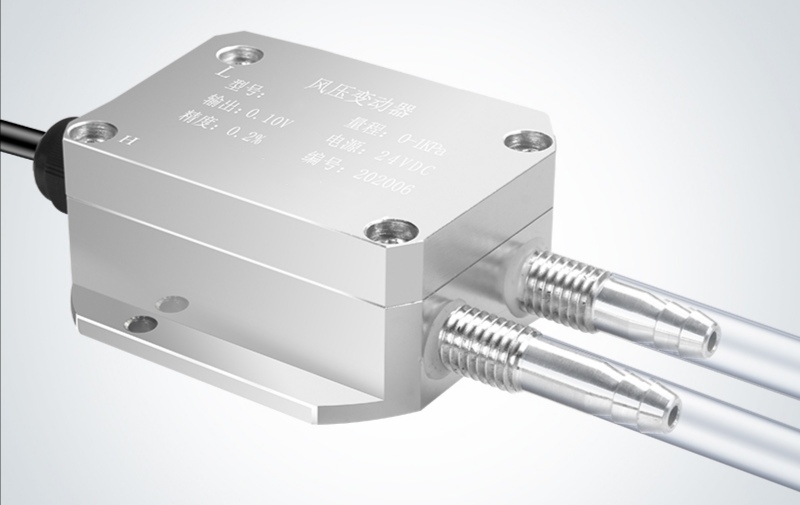

Model MC2070C Compact Differential Pressure Transmitter

DESCRIPTION
Model MC2070C Compact Differential Pressure Transmitter adopts diffused silicon chip and double seal pressure piping. It can be installed directly on pipeline or connected through probe. It is suitable for differential pressure measuring for medical treatment, chemical fiber, electricity, dustless house and etc. The transmitter uses proprietary current output with wide temperature compensation. This design references the primary pressure sensing diaphragm to the atmosphere, and provides a stable zero regardless of the transducer environment.
FEATURES
Pressure Media
gas
Supply Voltage
12 to 36V
Operating Range
(Differential/Gage/Negative Pressure):(-100KPa)-(-100Pa)-0~100Pa-200KPa
Accuracy
±0.25%, ±0.5%(25℃)
Over Pressure
200% full scale
Long Term Stability
<0.25%FS per year
Response
<100ms
Output Signal
(4~20)mA(Current two-wire/three-wire),(0~10/20)mA
(0~5)V,(1~5)V,(0~10)V, etc.
Temperature Range
-20~85℃(Normal), -20~200℃(Installation of the radiator)
Temperature Effects
0.00015%FS/℃
Pressure Connection
M12× 1\M20× 1.5\G1/2(Screw Thread) or user specified
Electrical Connection
HIRSCHMANN Connection \Aviation Connector\Cable Type
Protection Class
IP65


ORDERING CODES

MC2070C(  KPa)口E口A口C口R口 Compact Differential Pressure Transmitter
MC2070C
(KPa )
Operating Range
D: Differential Pressure  G: Gage Pressure  P: Negative Pressure
E口
Output Signal
1:(0~5)VDC  2:(4~20)mA  3: User Specified
A口
Accuracy
1:0.25  2:0.5
C口
Pressure Connection
1:1:G1/2 female  2:User Specified
R口
Electrical Connection
1: HIRSCHMANN Connection  2: Cable Type
3: User Specified
