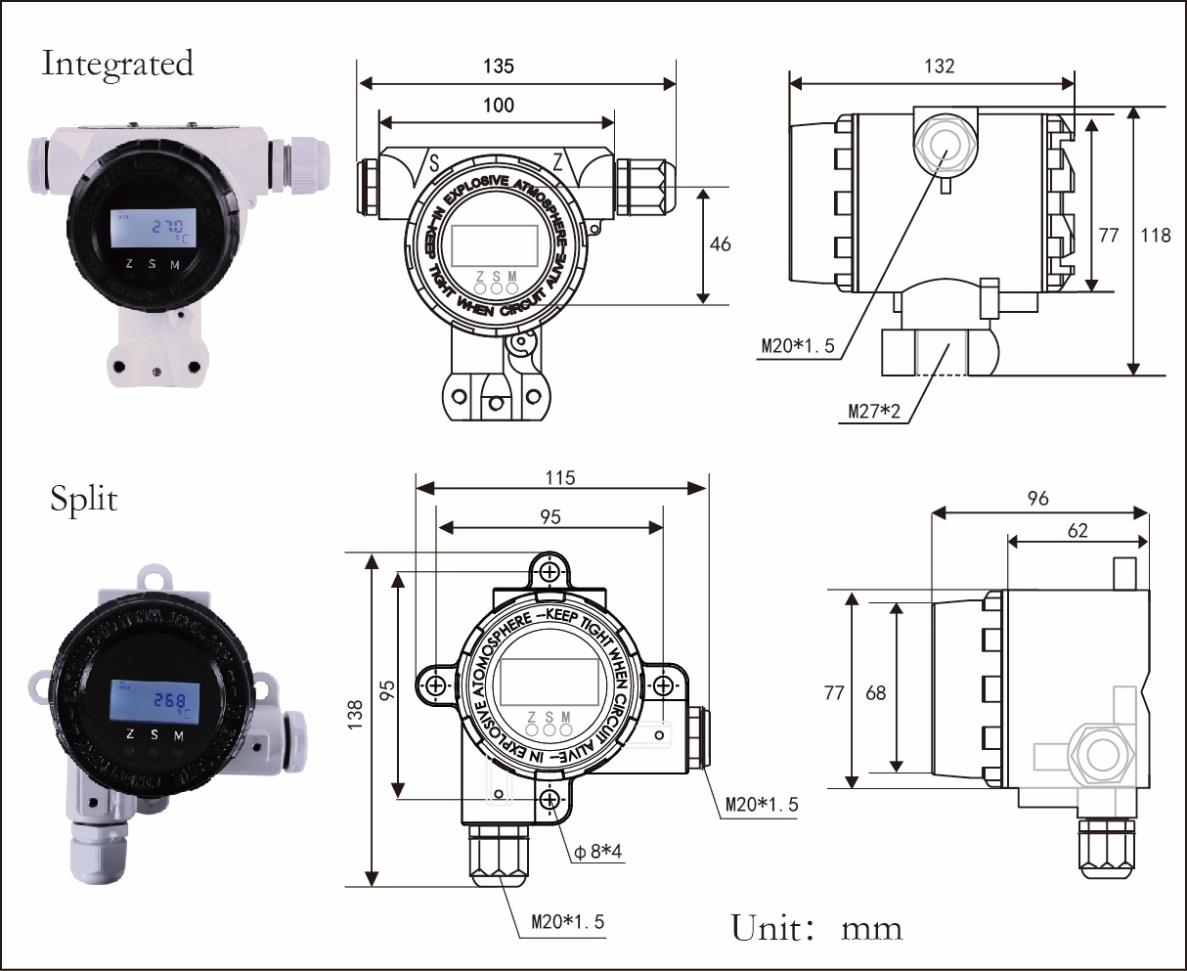

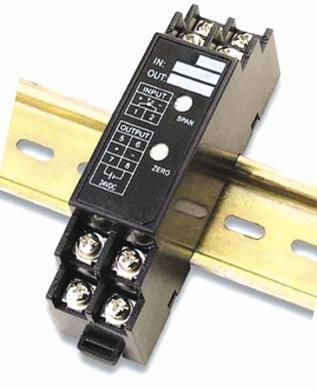

MCT80XH onsite display isolated temperature transmitter is used for the input of resistance temperature detector (RTD) signal and thermocouple (TC) signal and for two-wire or three-wire analog signal output (4−20mA). It is configured by the RS485 (MODBUS RTU protocol) or the HART protocol.
|
Input |
|
|
Input Signal |
Resistance temperature detector (RTD) and thermocouple (TC) |
|
Temperature Range of Cold Junction Compensation |
-20~70℃ |
|
Compensation Precision |
±1℃ |
|
Output |
|
|
Output Signal |
4 – 20mA or 4 – 20mA adds the HART protocol |
|
Load Resistance |
RL≤(Ue- 12)/0.022 |
|
Output Current for Upper/Lower Limit Overflow Alarm |
IH=21mA 、IL=3.8mA |
|
Output Current for Input Break Alarm |
Settable |
|
Power Supply |
|
|
Power Supply Voltage |
DC12~40V |
|
Other Parameters |
|
|
Transmission Precision (20°C) |
0. 1%FS |
|
Thermal Drift |
0.0075%FS/℃ |
|
Response Time |
700ms reaching 90% of the final value |
|
Environment Temperature |
-20~70℃ |
