DESCRIPTION

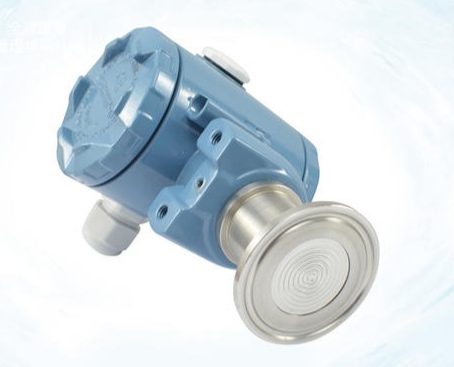

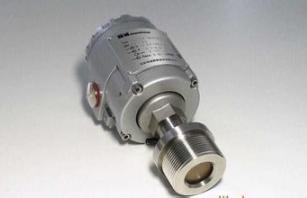

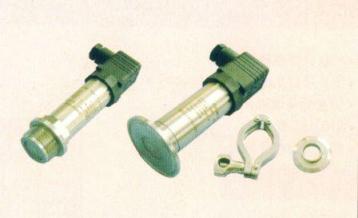

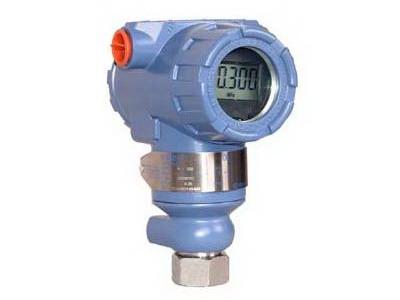

Based on MC20A pressure transmitter, model MC20WA sanitary (flush diaphragm) pressure transmitter applies welded diaphragm seal structure which is flush with process connection(thread, clamp, flange etc.). This kind of design makes it especially suitable for measuring medium of high temperature, fouling, high viscosity, easy-crystallized, easy-blocked etc. MC20WA is widely used in sanitary industries such as food, medicine, healthy and other industries.


FEATURES AND SPECIFICATIONS

Measuring Range: 0-5KPa~35MPa

Power: 15-36VDC

Temperature Shift: 0.02%FS/°C

Accuracy: 0.25%

Enclosure Protection: IP65

Electric Connection: Cable Lead out, \ Hirschmann Connector \ 2088-type Enclosure

Operating Temperature: -30~75℃;Medium Temperature: -40~205℃

Humidity: 0~95%

Stability: 0.25%/1 year

Influence of Mounting: Not more than 0.25kPa maximum of zero error. This can be zero-adjusted to eliminate this error, No effect on the range


ORDRING CODES

MC20W口口E口A口C口D口F口S口Sanitary (Flush Diaphragm) Pressure Transmitter
Pressure
G、Gauge Pressure    A、Absolute Pressure   S、Sealing Pressure    N、Negative Pressure
Diaphragm (N: Normal Temperature Type≤70℃,H: High Temperature Type≤200℃)
K: Diffused silicon transducer  T: Ceramic piezoresistive transducer  P :Ceramic capacitor transducer
E口
Signal Output
1、(0~5)VDC  2、(4~20) mA  3、(0~10) mA  4、Smart Type:4-20mADC+HART Protocol
5、User Specified
A口
Accuracy
1、0.25    2、0.5
C口
Process Connection
1、Thread M20×1.5   2、Thread G1/2    3、Thread M27×2    4、Clamp(Pls Specifying the Size) 5、Flange    6、User Specified
D口
Display
1、No Display  2、0~100%0-100% Indicator Meter 3、31/2 LCD Meter
S口
Electric Connection
1、 Cable Lead out 2、Hirschmann Connector 3、2088-type Enclosure  4、User Specified
