Pressure Transmitter

  • Model MC20A Compact Pressure Transmitter
  • Model MC20A Compact Pressure Transmitter
Model MC20A Compact Pressure TransmitterModel MC20A Compact Pressure Transmitter

Model MC20A Compact Pressure Transmitter

Model MC20A Compact Pressure Transmitter is a cost efficient general purpose pressure transmitter. Each unit is constructed of stainless steel for durability in severe environments. Both gas and liquid pressure overloads of up to 200% over capacity are safely accepted. The transmitter uses proprietary current output with wide temperature compensation. This design references the primary pressure sensing diaphragm to the atmosphere, and provides a stable zero regardless of the transducer environment.

FEATURES

Pressure Media
Fluids, gas
Supply Voltage
12 to 36V
Operating Range

Gauge Pressure: Max(0~100)MPa, Min(0~0.1)KPa

Absolute Pressure: Max(0~100)MPa, Min(0~20)KPa(0.5%)/(0~60 & above)KPa(0.25%)

(Negative Pressure)---Max(-100KPa~), Min(-0.1~0.1)KPa
Accuracy
±0.25%, ±0.5%(25℃)
Over Pressure
200% full scale
Long Term Stability
<0.25%FS per year
Response
<100ms
Output Signal
(4~20)mA(Current two-wire/three-wire),(0~10/20)mA
(0~5)V,(1~5)V,(0~10)V, etc.
Temperature Range
-20~85℃(Normal), -20~200℃(Installation of the radiator)
Temperature Effects
0.00015%FS/℃
Pressure Connection
G1/2 female or user specified
Electrical Connection
DIN Plug/Socket or Cable Type
Protection Class
IP65
ORDERING CODES
MC20A(  KPa)口口E口A口C口R口Compact Pressure Transmitter
MC20A
(KPa )
Operating Range
G: Gage Pressure  A: Absolute Pressure  P: Negative Pressure
K: Diffused silicon transducer  T: Ceramic piezoresistive transducer  P :Ceramic capacitor transducer
E口
Output Signal
1:(0~5)VDC  2:(4~20)mA  3: User Specified
A口
Accuracy
1:0.25  2:0.5
C口
Pressure Connection
1:G1/2 female  2:User Specified
R口
Electrical Connection
1: Cable Type  2: DIN Plug/Socket  3: User Specified

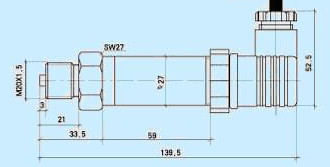

Cable Type

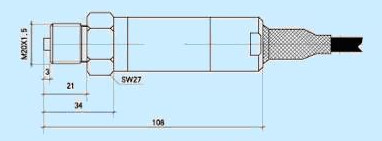

DIN Plug/Socket
