DESCRIPTION

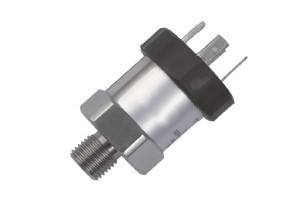

MC20AS ultra-small pressure transmitter is a cost efficient general purpose pressure transmitter. Each unit is constructed of stainless steel for durability in severe environments. Both gas and liquid pressure overloads of up to 200% over capacity are safely accepted.

Model MC20AS is a improved type on the basis of Model MC20A. It is made smaller and easier to install in limited space. Transmitter uses proprietary current output with wide temperature compensation. This design references the primary pressure sensing diaphragm to the atmosphere, and provides a stable zero regardless of the transducer environment.

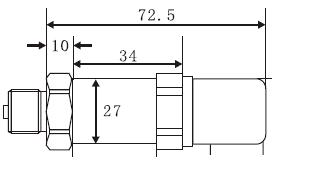

DIMENSIONS

FEATURES:

Pressure Media

Fluids, gas

Supply Voltage

12 to 36V

Operating Range

Gauge Pressure: Max(0~100)MPa, Min(0~0.1)KPa

Absolute Pressure: Max(0~100)MPa, Min(0~20)KPa(0.5%)/(0~60 & above)KPa(0.25%)


(Negative Pressure)---Max(-100KPa), Min(-0.10.1)KPa

Accuracy

±0.25%, ±0.5%(25)

Over Pressure

200% full scale

Long Term Stability

<0.25%FS per year

Response

<100s

Output Signal

(420)mACurrent two-wire/three-wire,010/20mA
05V,15V,010V, etc.

Temperature Range

-2085(Normal), -20200(Installation of the radiator)

Temperature Effects

0.00015%FS/

Pressure Connection

G1/2 female or user specified

Electrical Connection

DIN Plug/Socket or Cable Type

Protection Class

IP65
















ORDERING CODES:

MC20AS(  KPa)口口EACR Ultra-small pressure transmitte

MC20A

(KPa )

Operating Range

G: Gage Pressure  A: Absolute Pressure  P: Negative Pressure

K: Diffused silicon transducer  T: Ceramic piezoresistive transducer  P :Ceramic capacitor transducer

E

Output Signal

1(05)VDC  2(420)mA  3 User Specified

A

Accuracy

10.25  20.5

C

Pressure Connection

1G1/2 female  2User Specified

R

Electrical Connection

1 Cable Type  2 DIN Plug/Socket  3 User Specified
