DESCRIPTION

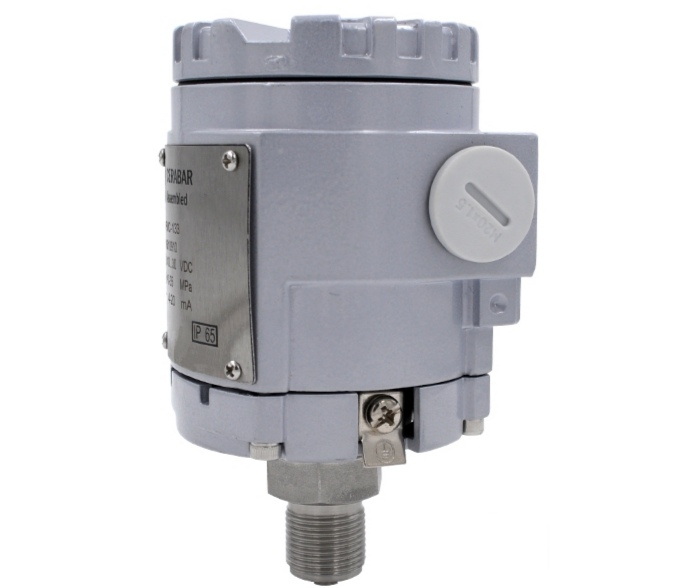

Model MC20E Pressure Transmitter is a cost efficient general purpose pressure transmitter which has cylindrical outer shape. Each unit is constructed of stainless steel for durability in severe environments. Both gas and liquid pressure overloads of up to 200% over capacity are safely accepted.
The transmitter uses proprietary current output with wide temperature compensation. This design references the primary pressure sensing diaphragm to the atmosphere, and provides a stable zero regardless of the transducer environment.
FEATURES
SPECIFICATIONS
|
Pressure Media
|
Fluids, gas
|
|
Supply Voltage
|
12 to 36V
|
|
Operating Range
|
Gauge Pressure: Max(0～100)MPa, Min(0～0.1)KPa Absolute Pressure: Max(0～100)MPa, Min(0～20)KPa(0.5%)/(0～60 & above)KPa(0.25%) |
|
(Negative Pressure)---Max(-100KPa～), Min(-0.1～0.1 )KPa
|
|
|
Accuracy
|
±0.25%, ±0.5%(25℃)
|
|
Over Pressure
|
200% full scale
|
|
Long Term Stability
|
<0.25%FS per year
|
|
Response
|
<100ｍs
|
|
Output Signal
|
(4～20)mA（Current two-wire/three-wire）,（0～10/20）mA
（0～5）V,（1～5）V,（0～10）V, etc. |
|
Temperature Range
|
-20～85℃(Normal), -20～200℃(Installation of the radiator)
|
|
Temperature Effects
|
0.00015%FS/℃
|
|
Pressure Connection
|
G1/2 female or user specified
|
|
Electrical Connection
|
Waterproof Connector(M20*1.5)
|
|
Protection Class
|
IP65
|
ORDERING CODES
|
MC20E( KPa)口口E口A口C口R口
|
||||||
|
|
(KPa )
|
Operating Range
|
||||
|
|
G: Gage Pressure A: Absolute Pressure P: Negative Pressure
|
|||||
|
|
K: Diffused silicon transducer T: Ceramic piezoresistive transducer P :Ceramic capacitor transducer
|
|||||
|
E口
|
Output Signal
|
|||||
|
|
1：(0～5)VDC 2：(4～20)mA 3： User Specified
|
|||||
|
A口
|
Accuracy
|
|||||
|
|
1：0.25 2：0.5
|
|||||
|
C口
|
Pressure Connection
|
|||||
|
|
1：G1/2 female 2：User Specified |
|||||
