Digital Indicator Controller

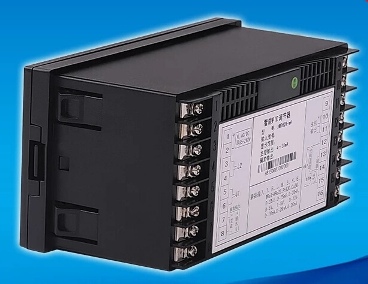

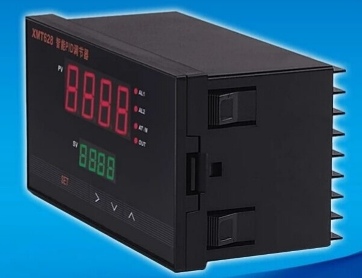

XMT6200 Digital PID Controller

Characteristics

Modular design, SMT technology, high performance.
Switching power supply.
Easy to install and operate.
Accurate measurement and precise control. Optional relay or SSR output.
2 - ways relay independently set and output, realizing upper and lower limit alarm.
Super strong PID self-tuning function automatically adapts the controlled object.
Long-term stability and strong anti-interference ability.
WATCHDOG circuit, digital filter, photoelectric isolation.
Fast response, small overshoot and oscillation period small steady state deviation.
Manually view the output percentage and facilitate system PID debugging.
Widely used in petrochemical, thermal, heating, water supply and other industries.

Technical parameters

Power supply: AC/DC85 to 260V.
Input signal: thermocouple T、R、J、WRe3-25、B、S、 K、 E、thermo resistance Pt100、Cu50、standard signals 0～375Ω、0～75mV、0～30mV、0～5V、1～5V、0～10V、0～10mA、0～20mA、4～20mA.
Accuracy: 0.2%FS.
Sampling rate: 5 times per second.
Display cycle: 0.6 seconds.
Feed power output: DC24V/30mA.
SSR level: DC12V/30mA.
Output: 4-20mA or 0-20mA.
Communication output: RS485 (MODBUS_RTU protocol).
Environment: 0-50℃; less than 85% RH.
