Digital Indicator Controller
XMG-DS6100 Column and Digital Indicator Controller
Price: US$59.00
Product description:
DOWNLOAD DATA SHEET
INQUIRY
Features
Mod
ular design
,
SMT technology
High performance
Input is compatible with the 19 signals
Range, decimal point and transmission
can be set arbitrarily
4 relays output
Isolated transmission output

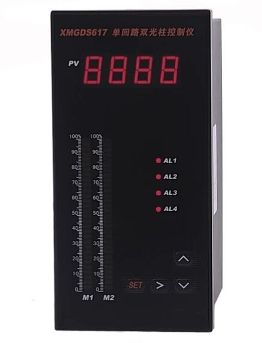

PV digital display window shows measurements, M1 column display measurements, M2 column shows alarm settings
Particularly suitable for the water level, water tank liquid storage equipment controlling
Technical parameters
Pow
er supply: AC/DC85 ~ 260V (24V optional)
Input signal: (19 signals) thermocoupleT, R, J, WRe3-25, B, S, K, E; thermo resistance Pt100, Cu50; standard signals 0 ~ 375Ω, 0 ~ 75mV, 0 ~ 30mV, 0 ~ 5V, 1 ~ 5V, 0 ~ 10V, 0 ~ 10mA , 0 ~ 20mA, 4 ~ 20mA
Display: -1999 ~ 9999
Cold end compensation: 0~50℃
Accuracy: 0.2%FS
Relay output: 4 relays, normally open and normally closed
Contact capacity: AC250V/3A; DC24V/5A
Feed power: DC24V/30mA
Transmission: 0 ~ 10mA, 0 ~ 20mA, 4 ~ 20mA
Transmission load capacity:
≤
500
Ω
.
Working environment: 0~50℃; 0~85%RH

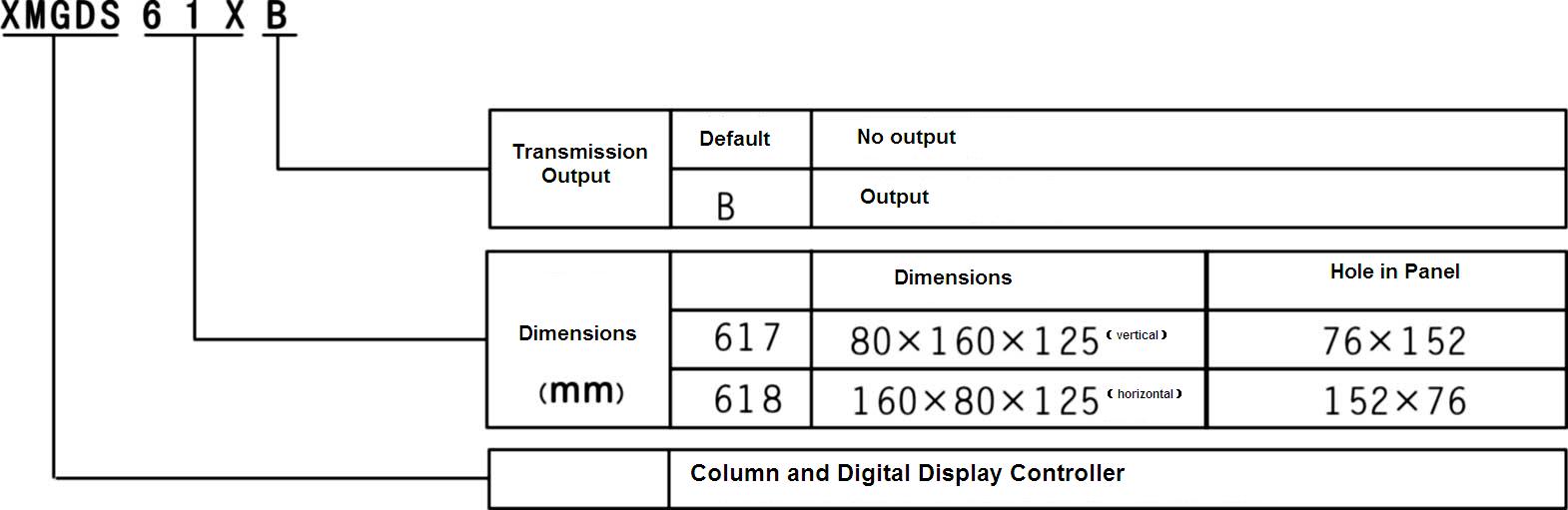

Model Selection
