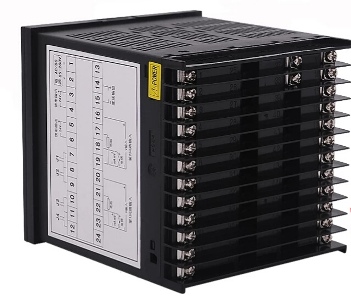

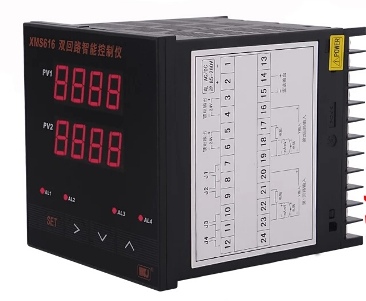

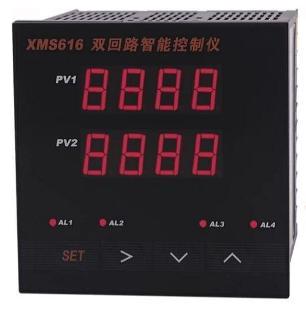

XMS6100 Dual Loops Input Indicator Controller

Characteristics

Thermal resistance, thermocouple, standard current or voltage signal are compatible input.
Two signals are independently input and set.
4 relay outputs can be arbitrarily allocated to two inputs.
2 output signals are isolated from the DC24V and the output range can be set.

Technical Parameters

Power: AC/DC85 ~ 260V (other voltage can be customized)
Input signal: (19 kinds). Thermocouples: T, R, J, WRe3-25, B, S, K, E. Thermal resistance: Pt100, Cu50. Standard signals: 0～375Ω、0～75mV、0～30mV、0～5V、1～5V、0～10V、0～10mA、0～20mA、4～20mA
Cold end compensation: 0~50℃
Feed power output: 2 DC24V/30mA.
Display: -1999 to 9999.
Accuracy: 0.2%FS
Relay contact capacity: AC250V/3A; DC24V/5A.
Output: 0-10mA, 0-20mA, 4-20mA.
Precision of transmission: 0.2%FS
Environment: 0-50℃，≤85% RH.
