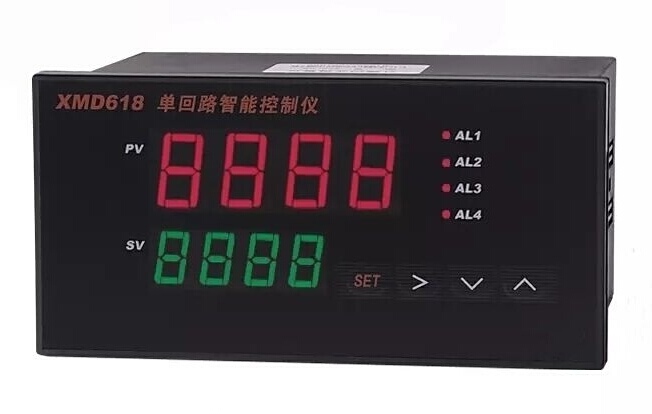

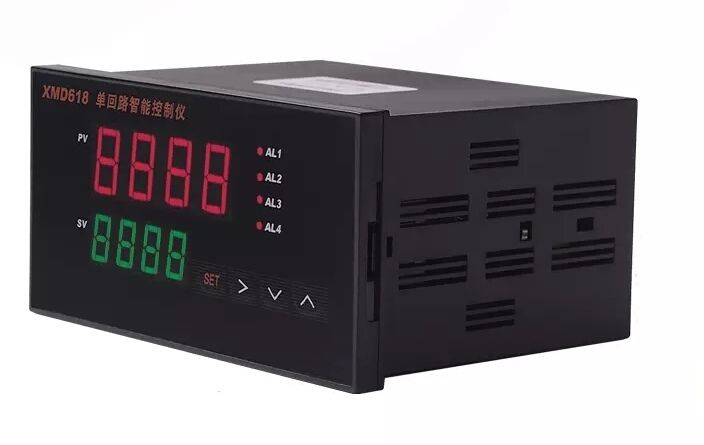

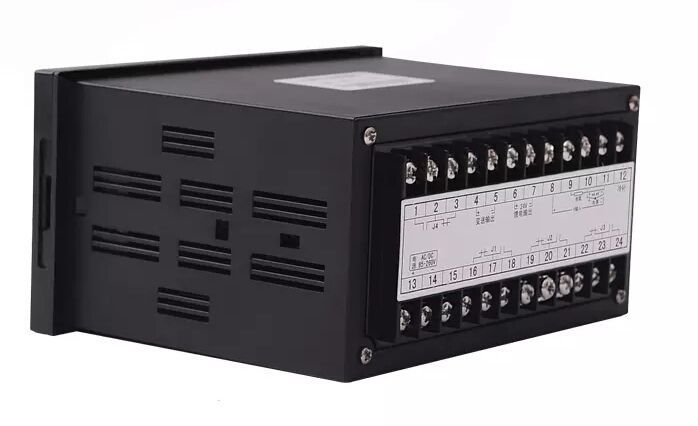

XMD6100 Dual Indicators with 4 Relays Controller

Characteristics
  • 19 kinds of signal compatible input
  • Range and decimal point can be set arbitrarily
  • 4 relays output
  • Dual indicators, PV window displays the measured value, and the SV window displays the alarm value.
  • Especially suitable for multi-point and multi-segment automatic control system.
  • Modularized designation,  convenient and flexible configuration.
Specifications
  • Power: AC/DC85 ~ 260V (24V optional).
  • Power consumption: less than 5W.
  • Input signal: (19 kinds) Thermocouples T, R, J, WRe3-25, B, S, K, E; Thermoresistance Pt100, Cu50; standard signals 0~375Ω、0~75mV、0~30mV、0~5V、1~5V、0~10V、0~10mA、0~20mA、4~20mA
  • Display: -1999 to 9999.
  • Cold end compensation: 0~50℃.
  • Accuracy: 0.2%FS.
  • Feed power: DC24V/30mA.
  • Contact capacity: AC250V/3A; DC24V/5A.
  • Load capacity: 500Ω.
  • Working environment: 0 ~ 50℃,0-85%RH.
  • Communication output: RS485.

Model Selection

XMD61X(B)-RS485:

Dimensionmm

Model

Dimension

Hole in Panel

XMD612

48*48*108square

44*44

XMD613

48*96*112vertical

44*92

XMD614

96*48*112horizontal

92*44

XMD615

72*72*112square

67*67

XMD616

96*96*112square

92*92

XMD617

80*160*80vertical

76*152

XMD618

160*80*80horizontal

152*76

Transmission Output

Default

No output

B

Outputcustomer specified

RS485 output

Default

No RS485 output

RS485

RS485 output
