XMT6000 Universal Digital Indicator Controller

XMT6000 Universal Digital Indicator Controller integrates display, control, transmission and other functions, can accepts thermocouple, thermal resistance, standard voltage or current signal, to display, control and transmitt temperature, pressure level, speed, pH value and other parameters. It is widely used in thermal, chemical, electrical and mechanical engineering, and other industries. It is an ideal product for a variety of automatic control system.

Characteristics

  • Single display
  • 2 relays control,
  • SMT technology,
  • High smart performance
  • 19 signals input accepted
  • Decimal point can be set arbitrarily
  • Thermocouple cold end temperature compensation
  • Current and voltage isolation
Technical Parameters
  • Power supply: AC/DC85 ~ 260V (24VDC Optional)
  • Power consumption: less than 5W
  • Signal input accepted: 19 signals include thermocouple R, T, J, WRe3-25, B, S, K, E; Thermo resistance Pt100, Cu50; standard signals 0~375Ω, 0 ~ 75mV, 0 ~ 30mV, 0 ~ 5V, 1 ~ 5V, 0 ~ 10V, 0 ~ 10mA, 0 ~ 20mA, 4 ~ 20mA
  • Display range: -1999 ~ 9999
  • Cold end compensation: 0 ~ 50
  • Accuracy: 0.25%F.S
  • Feed power: DC24V/30mA
  • Contact capacity: DC24V/3A; AC250V/5A
  • Transmission load capacity: 500Ω.
  • Working environment: 0-50℃,85%RH

Model Selection

XMT60X

Model

Dimension

Hole in Panel

Dimensionmm

XMT600

48*24*75horizontal

44*21

XMT601

72*36*75horizontal

68*33

XMT602

48*48*108square

44*44

XMT603

48*96*112vertical

44*92

XMT604

96*48*112horizontal

92*44

XMT605

72*72*112square

67*67

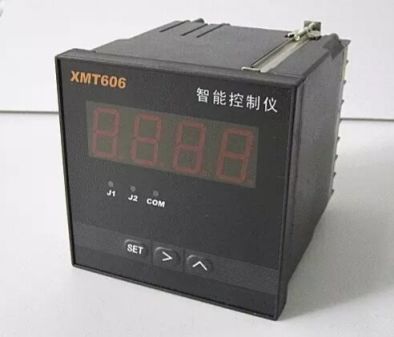

XMT606

96*96*112square

92*92

XMT607

80*160*80vertical

76*152

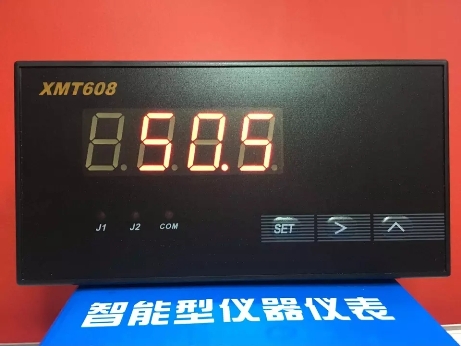

XMT608

160*80*80horizontal

152*76

XMT60X(B):

Transmission Output

Default

No output

B

Outputcustomer specified
