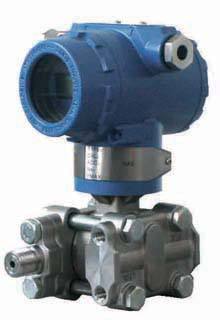

STONG M&C´s 3051(&1151) P pressure transmitter provides a kind of reliable measuring way. It is used for measuring pressure, level, density of liquid, gas or steam and convert the value of above into current signal output or digital protocol output. The pressures are directly applied to the isolating diaphragm that provide isolation and resistance against process fluid corrosion. Being microprocessor based, the electronic circuit is extremely versatile and accurate. Combined with the sensor precision, it provides the high accuracy and range ability. Transmitter performance is improved by continuous monitoring of the sensor temperature and corresponding corrections. A local display permits easy reading and writing of data.

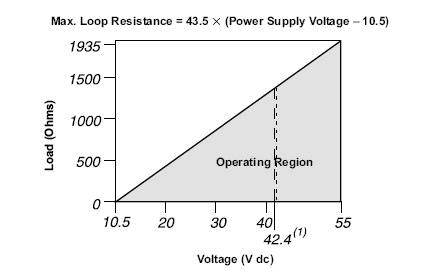

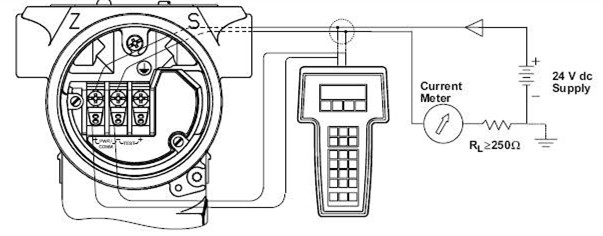

WIRING DIAGRAMS
3051P Pressure Transmitter
|
Introduction
|
||||||||
Range
|
2
|
0~0.125-1.5KPa
|
|||||||
3
|
0~1.3-7.5KPa
|
||||||||
4
|
0~6.2-37.4 KPa
|
||||||||
5
|
0~31.1-186.8 KPa
|
||||||||
6
|
0~117-690 KPa
|
||||||||
7
|
0~345-2068 KPa
|
||||||||
8
|
0~1170-6890 KPa
|
||||||||
9
|
0~3450-20680 KPa
|
||||||||
0
|
0~6890-41370 KPa
|
||||||||
Output
|
E
|
4-20mADC
|
|||||||
S
|
Smart: 4-20mA+Hart protocol
|
||||||||
Material
|
|
Flange
/Adaptor
|
Drains/Vents
|
Diagrams
|
Fill Fluid
|
||||
22
|
Stainless Steel 316
|
Stainless Steel 316
|
Stainless Steel 316
|
Silicon Oil
|
|||||
23
|
Stainless Steel 316
|
Stainless Steel 316
|
Haste alloy
|
Silicon Oil
|
|||||
24
|
Stainless Steel 316
|
Stainless Steel 316
|
Monel
|
Silicon Oil
|
|||||
25
|
Stainless Steel 316
|
Stainless Steel 316
|
Tantalum
|
Silicon Oil
|
|||||
33
|
Haste alloy
|
Haste alloy
|
Haste alloy
|
Silicon Oil
|
|||||
35
|
Haste alloy
|
Haste alloy
|
Tantalum
|
Silicon Oil
|
|||||
44
|
Monel
|
Monel
|
Monel
|
Silicon Oil
|
|||||
|
M1
|
0-100% Indicator Meter
|
|||||||
M3
|
31/2 LCD Meter
|
||||||||
|
No Meter
|
||||||||
B1
|
2” Pipe Mounting Angle Bracket, Carbon steel
|
||||||||
B2
|
Wall Mounting Angle Bracket, Carbon Steel
|
||||||||
B3
|
2” Pipe Mounting Bracket, Carbon steel
|
||||||||
|
No Bracket
|
||||||||
|
|
Static pressure 1MPa
|
|||||||
|
Static pressure 4MPa
|
||||||||
H1
|
Static pressure 10MPa
|
||||||||
H2
|
Static pressure 14MPa
|
||||||||
H3
|
Static pressure 25MPa
|
||||||||
H4
|
Static pressure 32MPa
|
||||||||
