Digital Indicator Controller

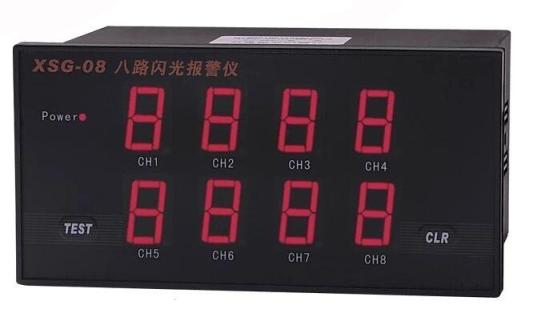

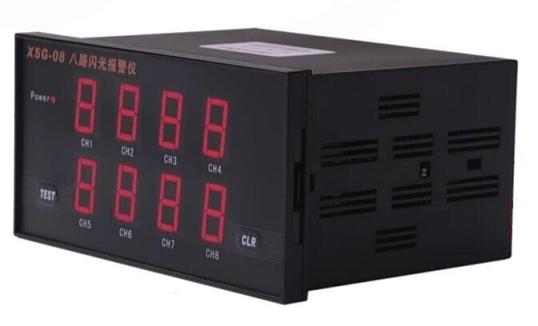

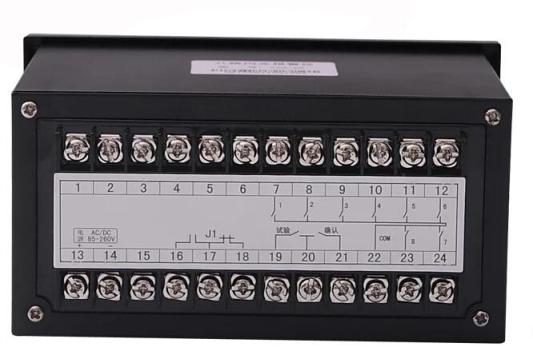

XSG08 8 Loops Alarm Indicator and Controller

Characteristics

8 loops input.
1 relay output.
8 LEDs display the 1~8 loops alarm.
Input signals is compatible with the switch and the electric level signal.
Normal open (high level) or normal closed (low level) input can be set through the internal dialing switch of the instrument.
Different types of signals can be set for different loops.
The loop test can be carried out through the TEST key or the short connection terminal. Through the CLR key or the short connection of terminals, the alarm output can be relieved. Switching power supply has a wide range of adaptability.

Technical parameters

Power supply: AC/DC85~260V.
Contact capacity: AC250V/3A; DC24V/5A. Input signal: compatible with the switch and the electric level signal.
Level signal: alarm level: -1V to 7V; non alarm level: 8V to 12V.
Dimension: 160 x 80 x 124mm.
Aperture size: 152 x 76mm.
Environment: 0~50℃，0-85%RH.

Model Selection

XSG08	8 loops input, 1 relay output, testing and silencing function, 0.8″red LCD indicator.
Dimensions	A－	Horizontal 160(W)×80(H)×125(L)
Signal Input		1	Switch Input without Voltage
		2	4~12V Voltage
Feed Power			B0	Non
			B1	24VDC
			B2	12VDC
Communication Interface				S0	Non
				S1	RS232
				S2	RS485
Power					V0	AC220V
					V1	DC24V
					V2	Others Optional
