Digital Indicator Controller

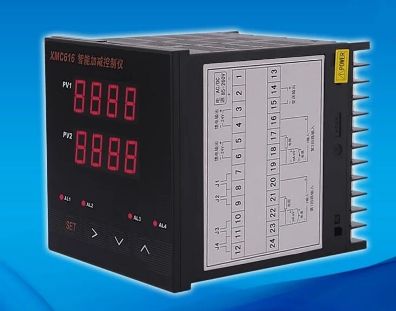

XMC6100 Dual Loops Input Addition and Subtraction Controller

Characteristics

19 kinds of signal can be input.

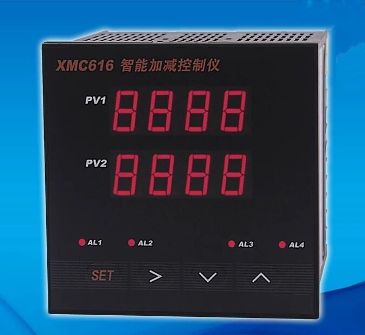

2 loops measurements and results of addition or subtraction can be displayed simultaneously.
4 relays output can allocated to the two loops or the results of the operation.
The result of the operation or any loop can be realized isolated transmission output.

Technical parameters

Power supply: AC/DC85 ~ 260V (other voltage can be customized).
Power consumption: less than 5W.
Input signal: 19 kinds, thermocouple: T, R, J, WRe3-25, B, S, K, E, thermal resistance: Pt100, Cu50, standard signal: 0～375Ω、0～75mV、0～30mV、0～5V、1～5V、0～10V、0～10mA、0～20mA、4～20mA.
Range of display: -1999 to 9999.
Cold end compensation: 0~50℃.
Accuracy: 0.2%FS.
Contact capacity: AC250V/3A; DC24V/5A.
Feed power output: DC24V/30mA.
Transmission output: 0-10mA, 0-20mA and 4-20mA.
Load capacity: ≤500Ω.
Environment: 0-50℃，≤85% RH.
